API Standard Drill Pipe Elevators Type DDZ
- Elevators
- Drill Pipe Elevators
- Drill Pipe Elevators Type DDZ
- Product description: Elevators;Drill Pipe Elevators;Drill Pipe Elevators Type DDZ
Product introduction
1.DD type drill pipe elevators for oil well drilling at best price

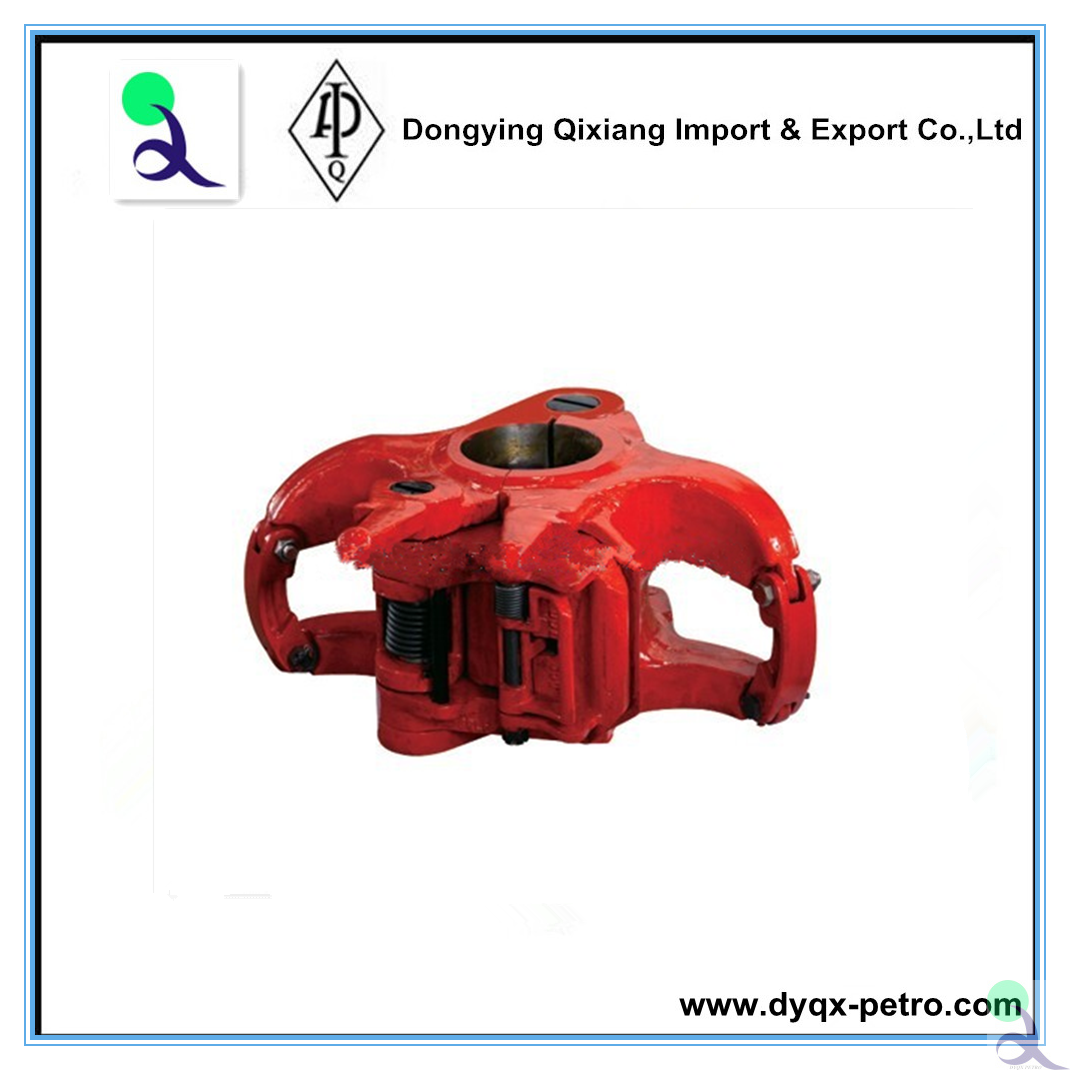

DD Center Latch Elevators
The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field.The Elevators are designed and manufactured according to API Spec 8C-Specification for Drilling and Production Hoisting Equipment.
Specifications
DD Center Latch Elevator
1.Produced according to API 8A/8C
2.Rated Load :100~350Tons
3:Pipe size:2 3/8-5 1/2"
4,Best delivery
Technical Parameters
|
Main Technical Parameters: |
|||||
|
Model |
Size (in) |
Rated
Capacity |
|
||
|
Drill Pipe |
Casing |
Tubing |
|
||
|
DD-100 |
2.3/8-5.1/2 |
4.1/2-5.1/2 |
2.3/8-4.1/2 |
150 |
|
|
DD-250 |
2.3/8-5.1/2 |
4.1/2-5.1/2 |
2.3/8-4.1/2 |
250 |
|
|
DD-350 |
2.3/8-5.1/2 |
4.1/2-5.1/2 |
2.3/8-4.1/2 |
350 |
|

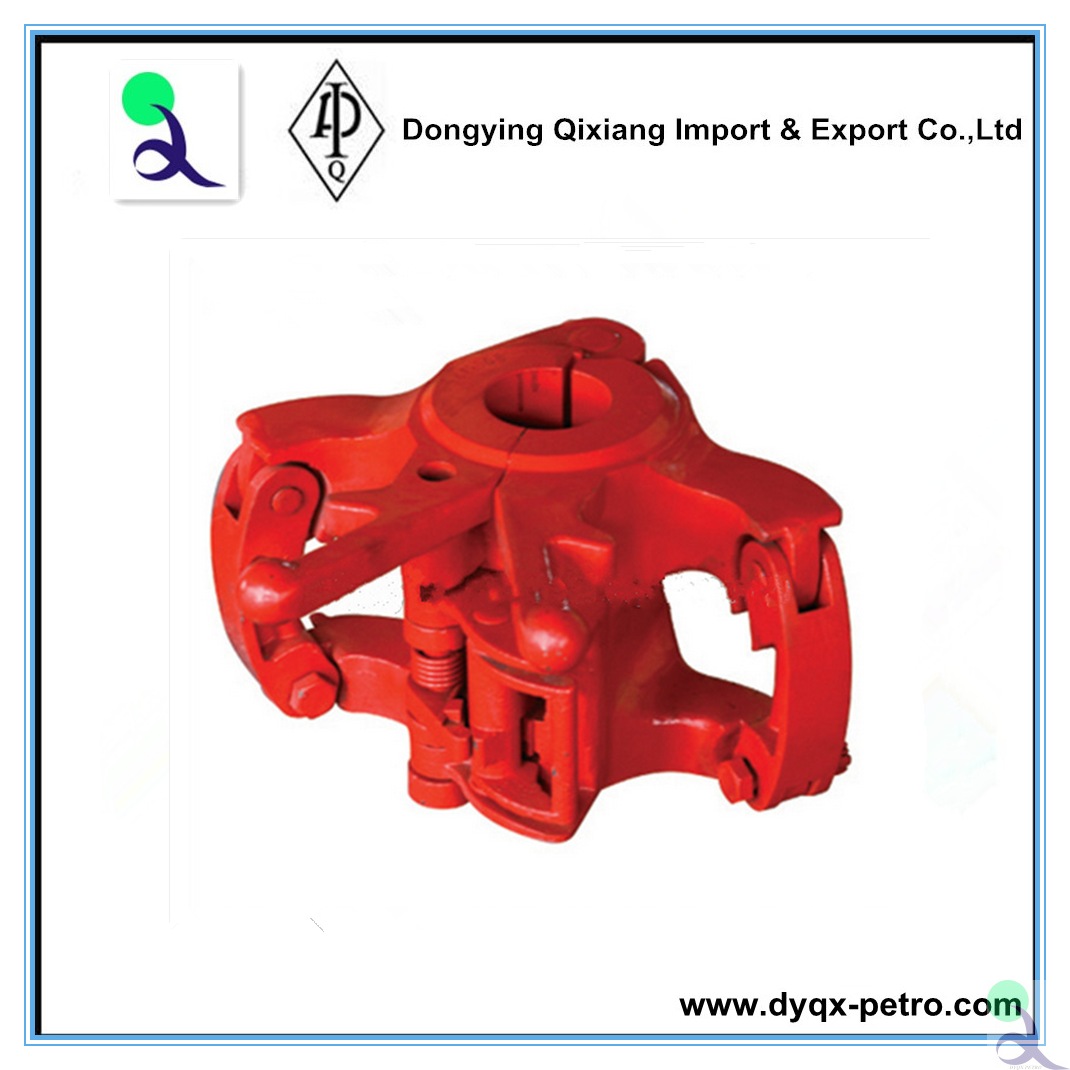

Type DDZ drill pipe
elevator with API 8A/8C
DDZ series elevators are center latch elevator with 18 degree taper shoulder,
applied in handling the drilling pipe and drilling tools, etc.
The load ranges from 100 tons to 750 tons. The size ranges are from 2.3/8" to 6.5/8".
|
Model |
Size(in) |
Rated Capacity (short tons) |
Remark |
|
|
DDZ -100 |
2.3/8-5 |
100 |
MG |
|
|
DDZ -150 |
2.3/8-5.1/2 |
150 |
RG |
|
|
DDZ -250 |
2.3/8-5.1/2 |
250 |
MGG |
|
|
DDZ -350 |
3.1/2-5.7/8 |
350 |
GG |
|
|
DDZ -350TD |
3.1/2-5.7/8 |
350 |
For Top Drive |
|
|
DDZ -500 |
3.1/2-6.5/8 |
500 |
HGG |
|
|
DDZ -500TD |
3.1/2-6.5/8 |
500 |
For Top Drive |
|
|
DDZ -750 |
4-6.5/8 |
750 |
For Top Drive |
|
